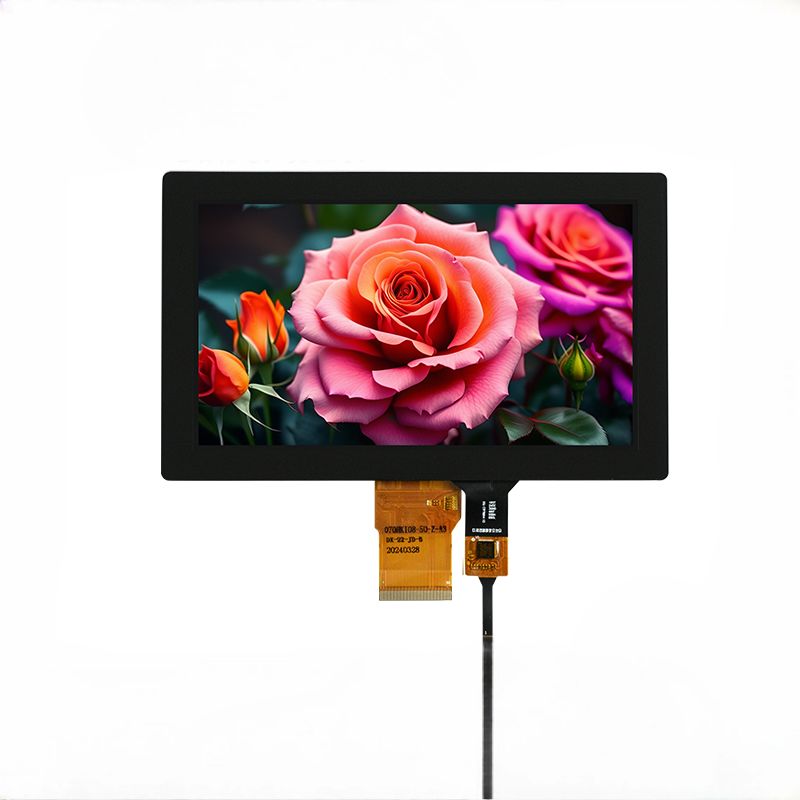

Name: OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brand: HongKong Guanke Industrial Limited
SKU: FS-TFT
Price: 3.10 USD
Availability: InStock

Zu Hause > produits > tft lcd-Modul >

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Herkunftsort:

Dongguan, China

Markenname:

Fangsheng

Zertifizierung:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Modellnummer:

FS-TFT

Kontakt mit uns

Bitte um ein Angebot

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Einzelheiten zum Produkt

Produktname:

OEM ODM 7 Zoll TFT LCD Modul mit LVDS-Schnittstelle Touchscreen 1000 Nits 7 Zoll TFT LCD Display für

Helligkeit:

1000 Nissen

Schnittstelle:

SPI/RGB/MIPI/LVDS, etc.

Eigenschaften:

Breiter Temperaturbereich, hohe Helligkeit, Störfestigkeit, Stoßfestigkeit, langlebig

Brauch:

PFC, CTP, Abdeckungsglas usw.

Anwendung:

Fabrikautomatisierungs-Schalttafeln, CNC-Maschinenanzeigen usw.

Auflösung:

800x480 (Benutzerdefiniert)

Hervorheben:

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Zahlungs- und Versandbedingungen

Min Bestellmenge

500

Preis

$0.1-$8

Verpackung Informationen

Blasenbeutel + Blasenbeutel + Schaumbüchse + Karton

Lieferzeit

3 bis 5 Arbeitstage

Zahlungsbedingungen

L/C, T/T, D/A, D/P, Western Union, Paypal

Versorgungsmaterial-Fähigkeit

200 000 Stück / Monat

Verwandte Produkte

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Product Specifications

Attribute	Value
Product Name	OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brightness	1000 nits
Interface	SPI/RGB/MIPI/LVDS, etc.
Features	Wide temperature range, high brightness, anti-interference, shock resistance, durable
Custom	PFC, CTP, Cover glass, etc.
Application	Factory automation control panels, CNC machine displays, etc.
Resolution	800x480 (Custom)

Key Features

High brightness up to 800/1000/1500 nits for sunlight readability
Wide operating temperature from -30°C to +85°C for extreme environments
Ultra-low power consumption for energy-saving performance
High contrast ratio for vivid and sharp images
Fast response time (<20ms) for smooth video playback
High pixel density for crisp text and detailed graphics

Technical Parameters

Parameter	Specification
Resolution	800 × 480 pixels
Interface	LVDS
Driver IC	RM533CO + RM577C1
Viewing Angle	Free Viewing Angle (Free V.A)
Touch Support	Capacitive Touch Panel (CTP)
Operating Temp.	-30°C to +85°C (Wide Temperature Range)
Brightness	1000 nits (High Brightness)
Dimensions	165.40 × 104.59 × 7.73 mm
Active Area	152.40 × 91.44 mm
Key Features	Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT
