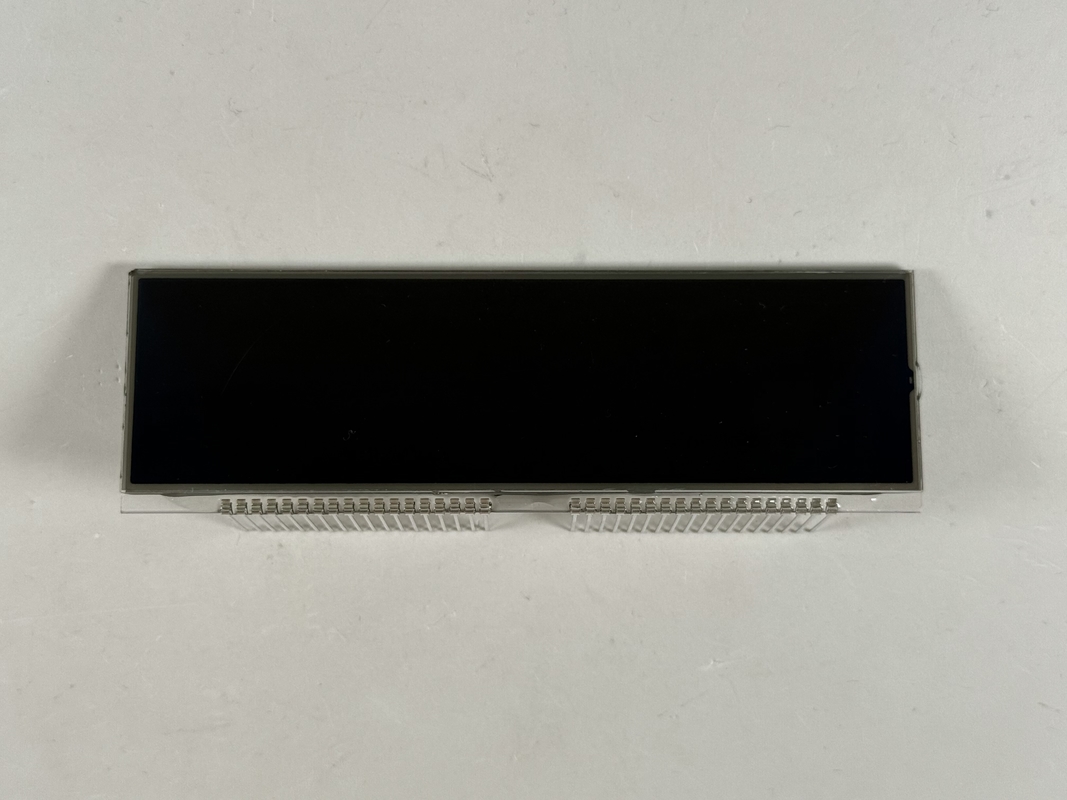

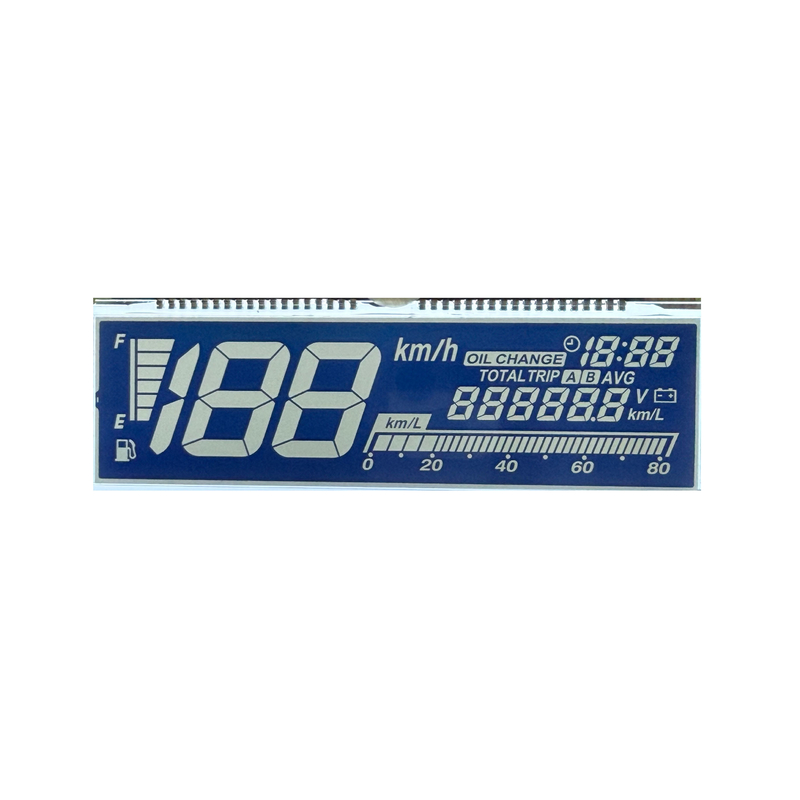

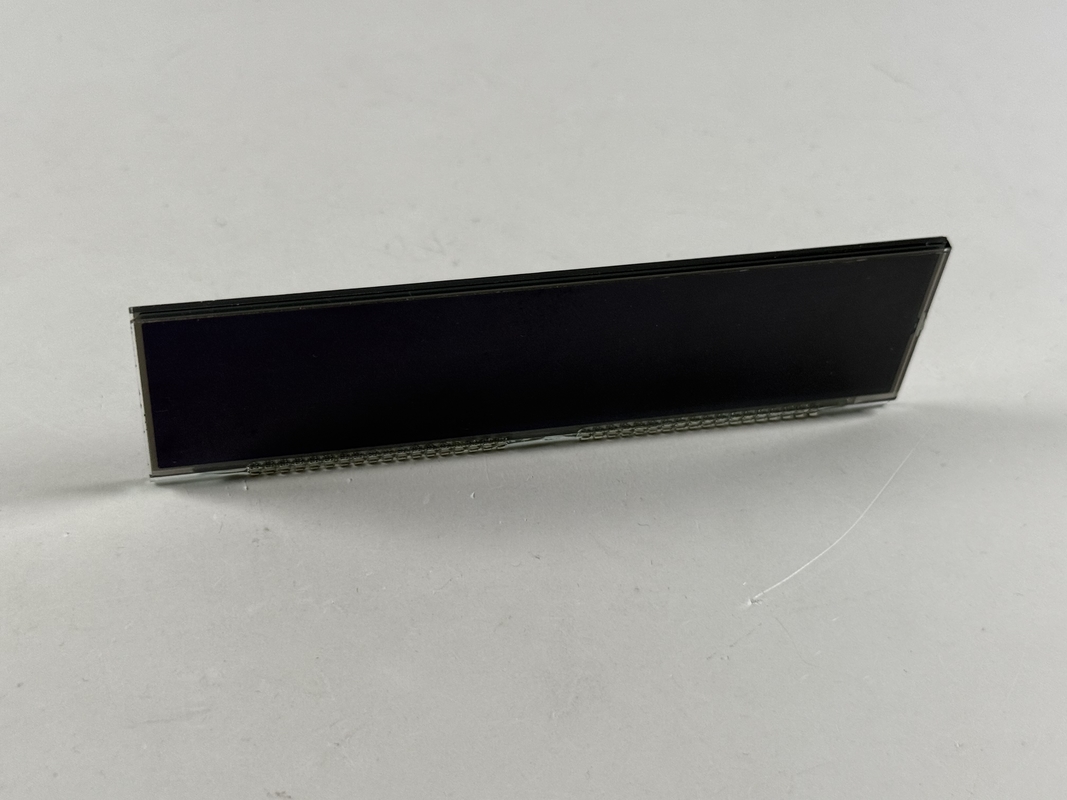

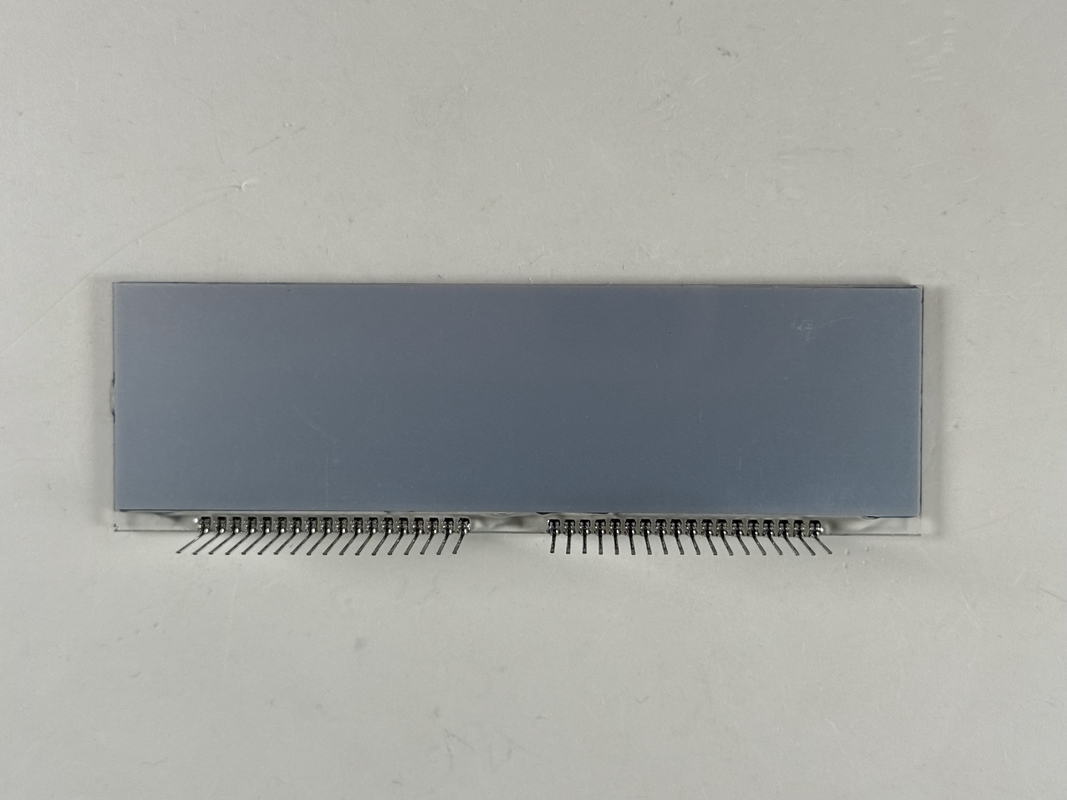

Name: HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display
Brand: HongKong Guanke Industrial Limited
SKU: Fs-htn
Price: 3.10 USD
Availability: InStock

Zu Hause > produits > Anzeige HTN LCD >

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

HTN LCD display for instruments

custom HTN LCD connector

segment type HTN LCD

Herkunftsort:

Dongguan, China

Markenname:

Fangsheng

Zertifizierung:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Modellnummer:

Fs-htn

Kontakt mit uns

Bitte um ein Angebot

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

Einzelheiten zum Produkt

Produktname:

HTN LCD -Anzeige Pin -Anschluss -Segmenttyp HTN LCD für Instrumente und Messgeräte Benutzerdefiniert

Anzeigeart:

HTN, negativer Modus

Anschlusstyp:

PIN (angepasst)

Schnittstellentyp:

Parallele Schnittstelle, SPI, RS232, MCU usw.

Ansichtsrichtung:

6 Uhr (angepasst)

Betriebsspannung:

5v (angepasst)

Hervorheben:

HTN LCD display for instruments

custom HTN LCD connector

segment type HTN LCD

Zahlungs- und Versandbedingungen

Min Bestellmenge

1000

Preis

$0.1-$8

Verpackung Informationen

Bubble Bag + Blister + Schaumkasten + Karton

Lieferzeit

25-30 Tage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, Moneygram,

Versorgungsmaterial-Fähigkeit

200k Sets / Monat

Verwandte Produkte

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

Product Specifications

Attribute	Value
Product name	HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display
Display Type	HTN, negative mode
Connector Type	PIN (Customized)
Interface type	Parallel Interface, SPI, RS232, MCU, etc
Viewing Direction	6 o'clock (Customized)
Operating Voltage	5V (Customized)

Technical Specifications

Parameter	Specification	Description
Display Mode	HTN, Negative	High Transmissive Nematic, Negative mode (dark characters on bright background)
Drive Condition	1/4 Duty, 1/3 Bias	LCD driving method and bias ratio
Viewing Direction	6 O'Clock	Optimal viewing angle from bottom
Operating Temperature	-30°C to +80°C	Temperature range for normal operation
Storage Temperature	-40°C to +85°C	Safe storage temperature range
Operating Voltage	5.0 V	Typical operating voltage
Frame Frequency	64 Hz	LCD driving frame rate
Front Polarizer	Transmissive, Adhesive	Type and adhesive of front polarizer
Back Polarizer	Transflective, Adhesive	Type and adhesive of back polarizer
Connectors	PIN	Interface type

Key Features

Simple and Clear Display - Ideal for showing numbers, letters, or basic symbols with high readability.
Low Power Consumption - Uses minimal energy, making it perfect for battery-powered devices.
Cost-Effective Solution - Economical choice for small-scale displays compared to graphic screens.
Durable and Long-Lasting - Resistant to long-term usage and environmental factors.
Easy Integration - Can be embedded into electronic devices like meters, medical instruments, and appliances.
